Highlights
- Two cylinder direct lifting system. To ensure hoist raises and lowers smoothly.
- Safety locks on both lifting columns.
- 2 Cable synchronization.
- A wide drive-thru clearance.
- ETL Power Unit
Specifications

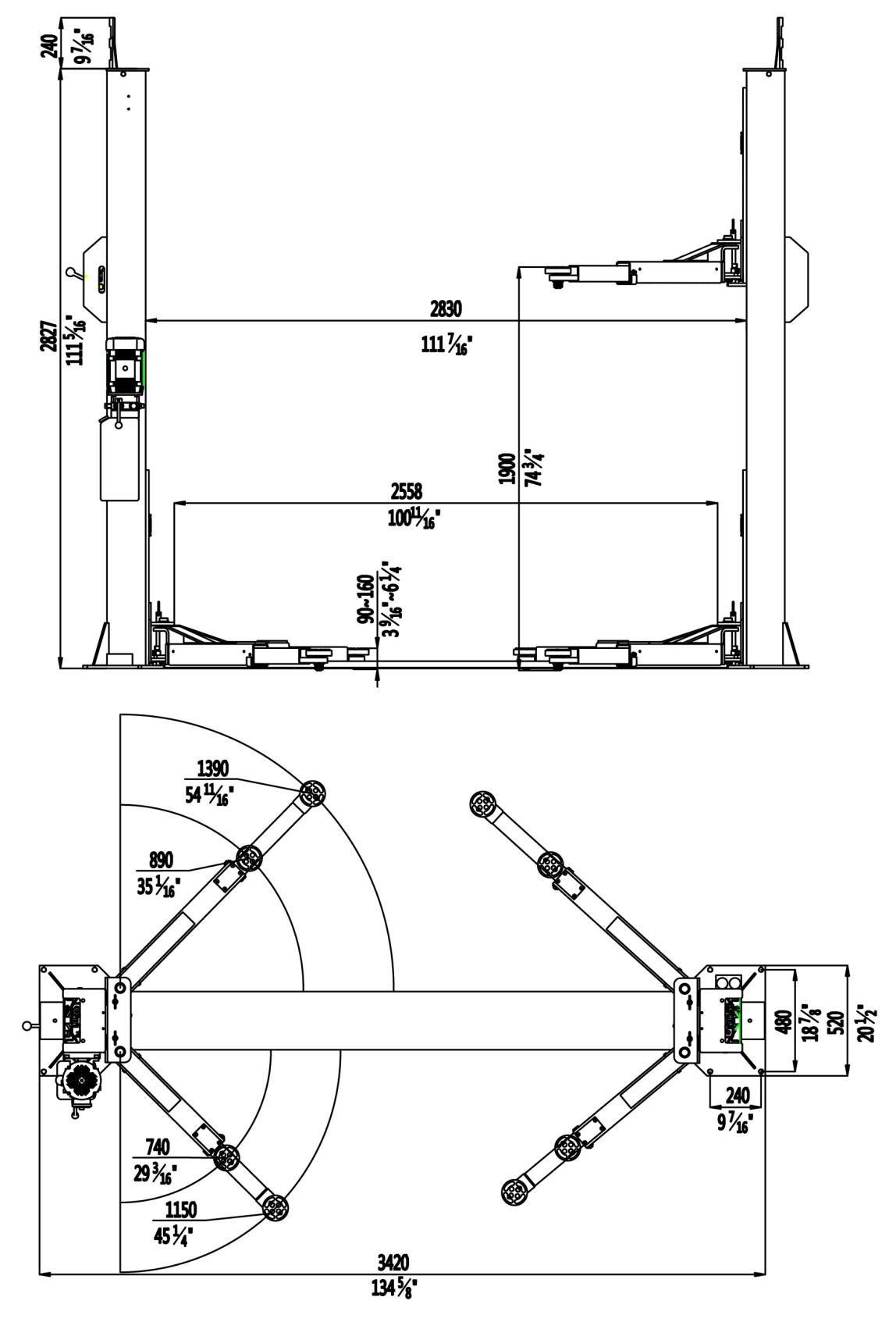

Model | MJ-F10 |
Lifting Capacity | 10000 lbs. |
Max. Lifting Height | 74 3/4” |
Lifting Time | 55s |
Overall Height | 111 5/16” |
Overall Width | 134 5/8” |
Width between columns | 111 7/16” |
Drive-Thru Clearance | 100 11/16" |
Min. Pad Height | 3 9/16" |
Power supply | 220 VAC/1 Ph. |
Shipping weight | 1482 lbs |
Shipping dimensions | 113”x22”x30” |

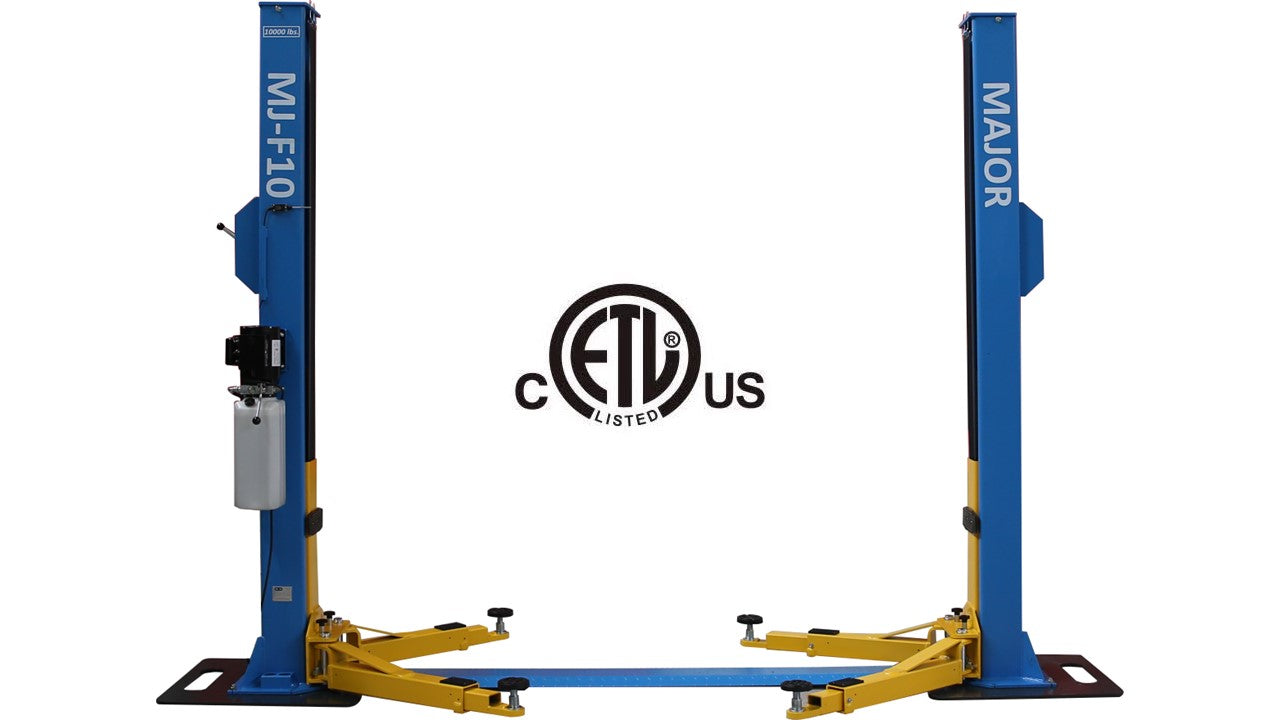

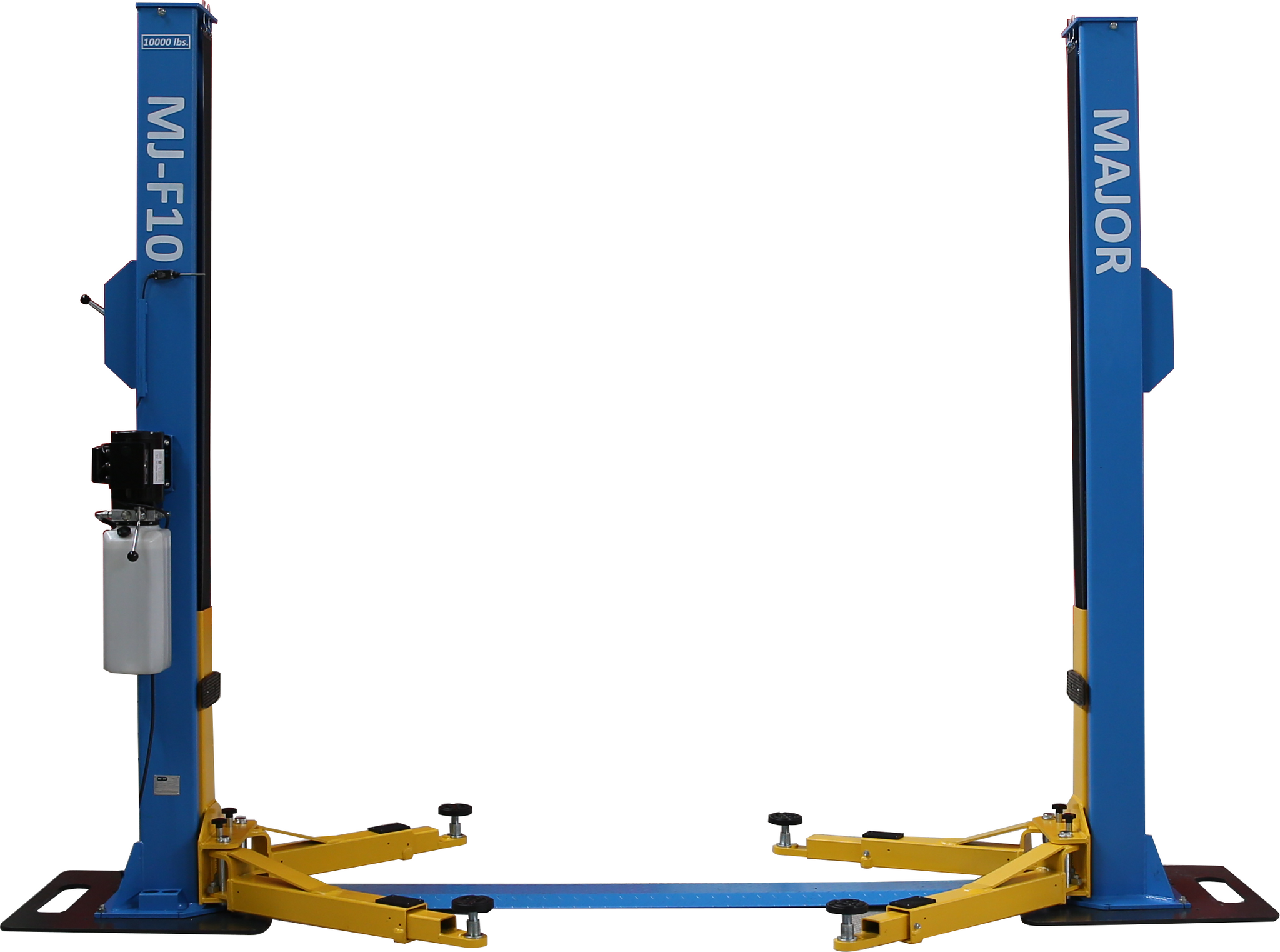

2 Post Automotive Lift MJ-F10 is a 10,000 lbs certified lifting capacity hoist ideal for high volume automotive repair shops, express lubes, tire shops, car dealers, etc. Compared to our similarly priced competitors our hoists are much stronger and better quality including UL approved power unit with excellent value for our customers. Please download and look through the Usermanual for more detailed information
- Two cylinder direct lifting system. To ensure hoist raises and lowers smoothly.
- Safety locks on both lifting columns.
- 2 Cable synchronization.
- A wide drive-thru clearance.
- ETL Power Unit
USER'S MANUAL
POS. | Description | Function |

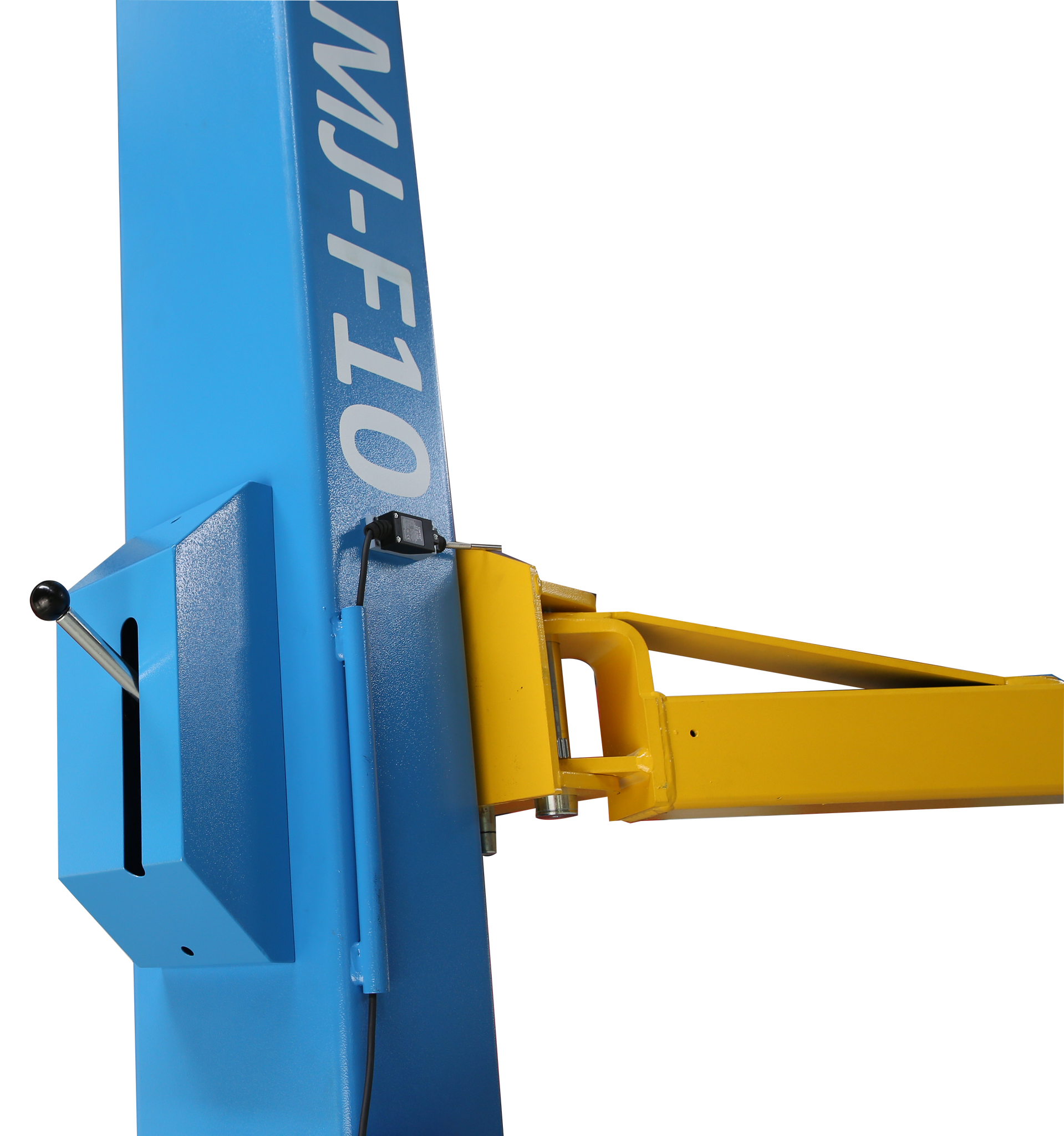

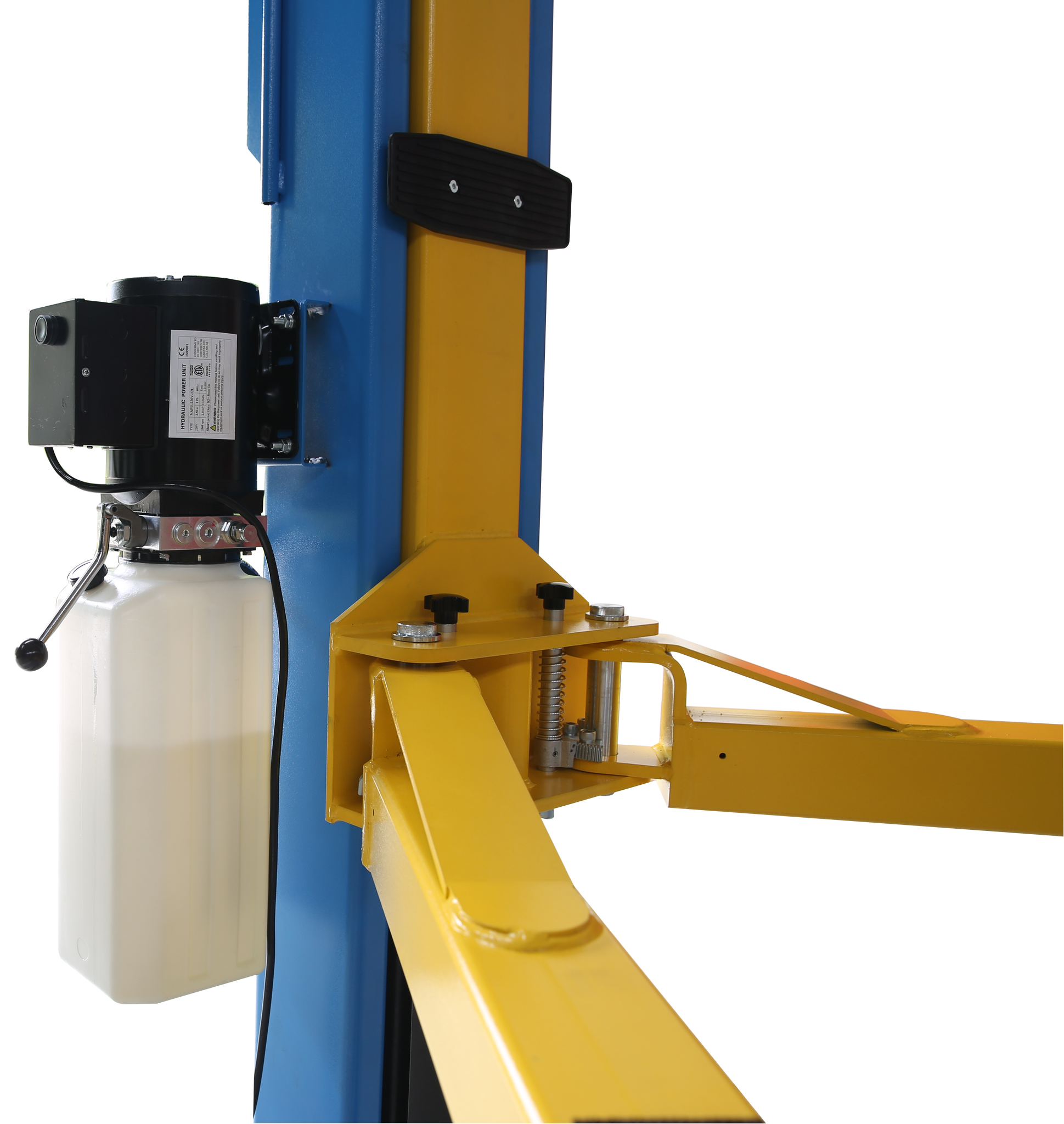

1 | Arm lock | Ensure the supporting arms are locked and avoid swinging during lifting process |

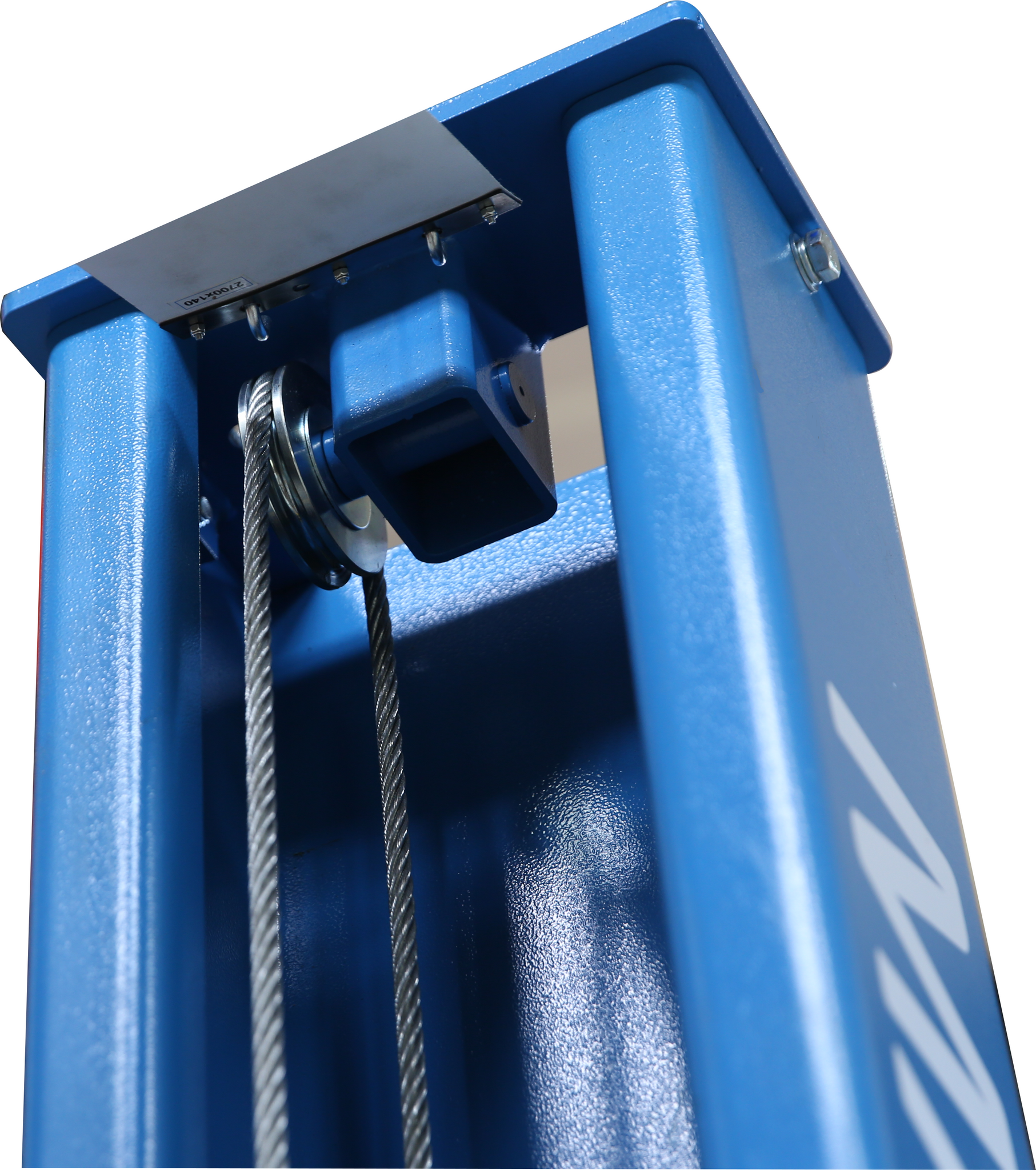

2 | Steel cable | Balance carriages at both sides. |

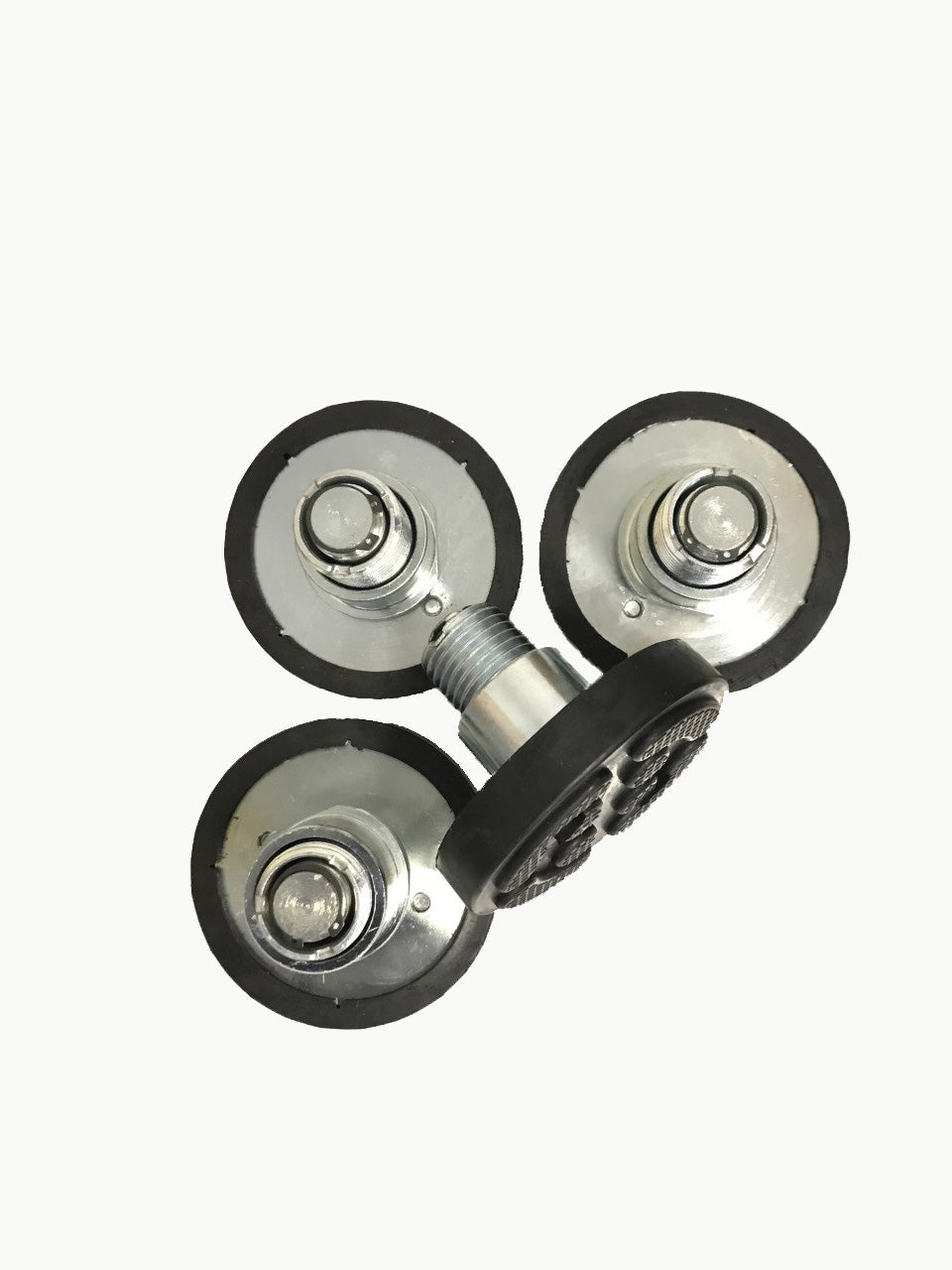

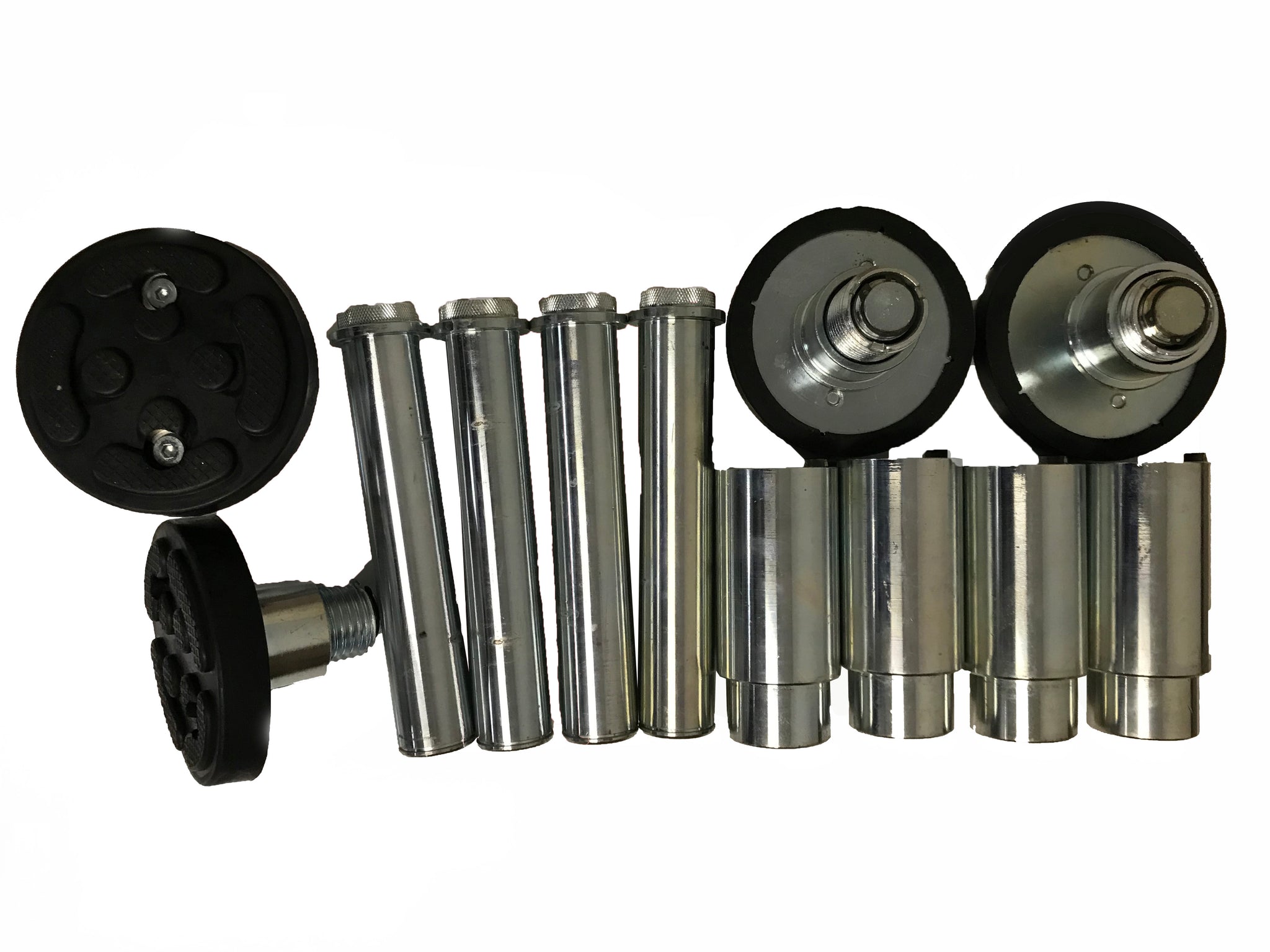

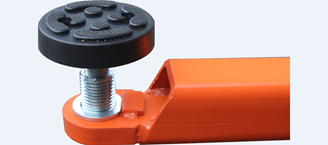

3 | Rubber pad | Safe contact with the wheelbase |

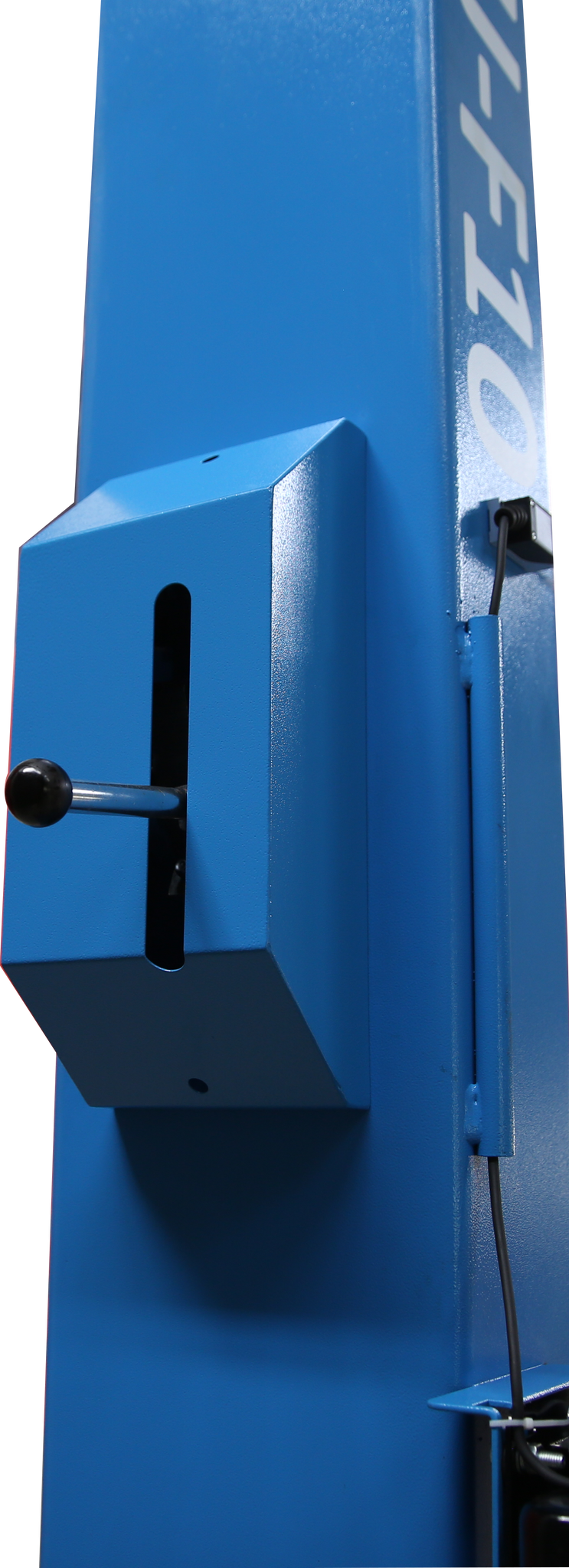

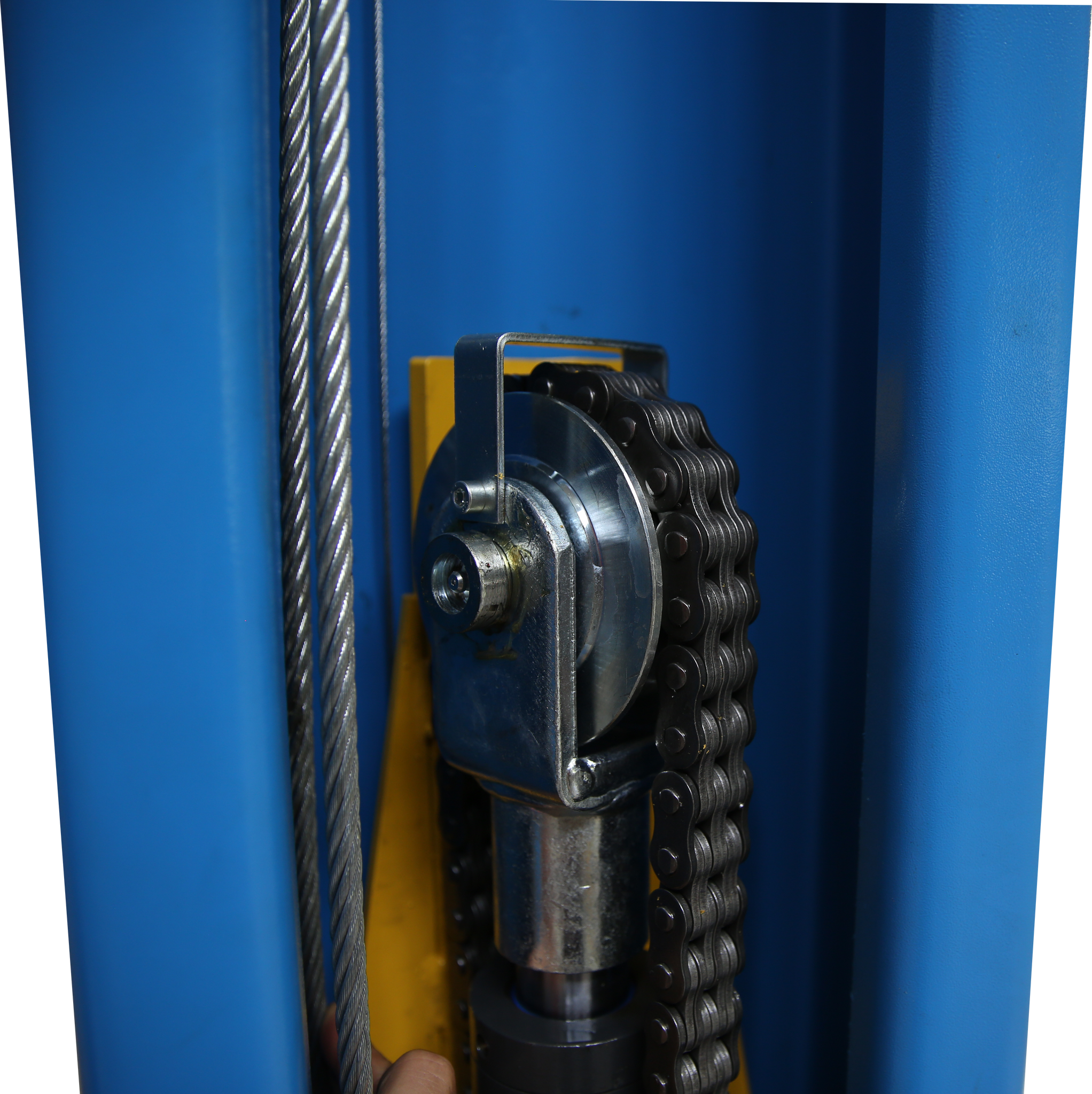

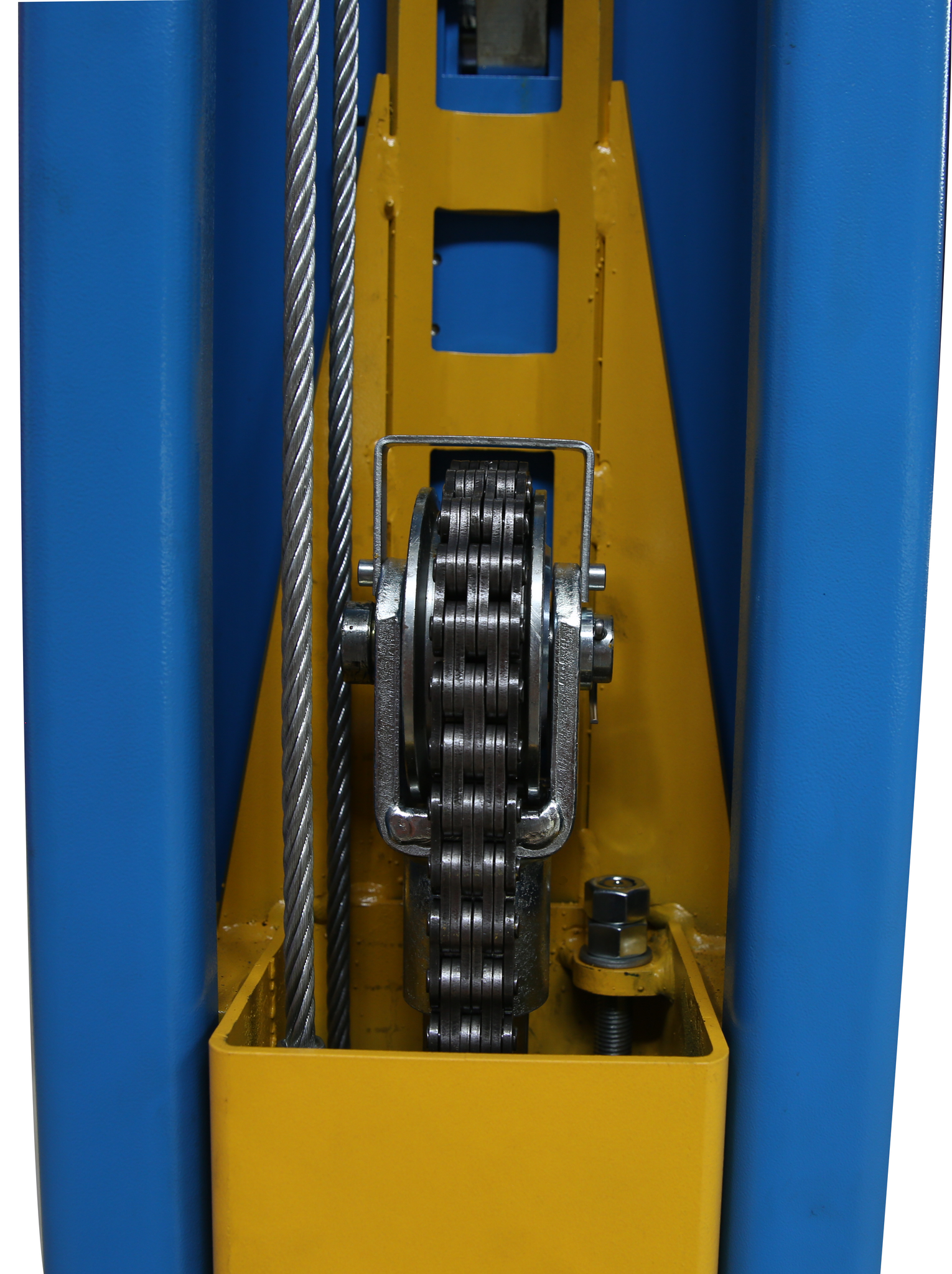

4 | Mechanical safety locking unit | Catch the carriages in case of hydraulic failure |
5 | Max height limit switch | Stop rising at max height |
Descriptions:
Major MJ-F10 is a 10,000 lbs certified lifting capacity hoist ideal for high volume automotive repair shops, express lubes, tire shops, car dealers, etc. Our hoists are much stronger and built without compromise for safety and long maintenance free life. ETL approved power unit certified for Canadian/US electrical code. Please download the Usermanual for in depth detailed information about the hoist as well as installation instructions. Included are 3/4"/19mm floor anchor bolts and floor shims.
- Two cylinder direct lifting system. To ensure hoist raises and lowers smoothly.
- One lever unlocks both sides. Safety locks on both lifting columns.
- 2 Cable synchronization with large diameter steel pullies less cable strain.
- A wide drive-thru clearance. (9'2")
- ETL Approved Power Unit meets Canadian/US electrical code.
- Minimum celling 157 1/2"
* This hoist is not ALI certified.
