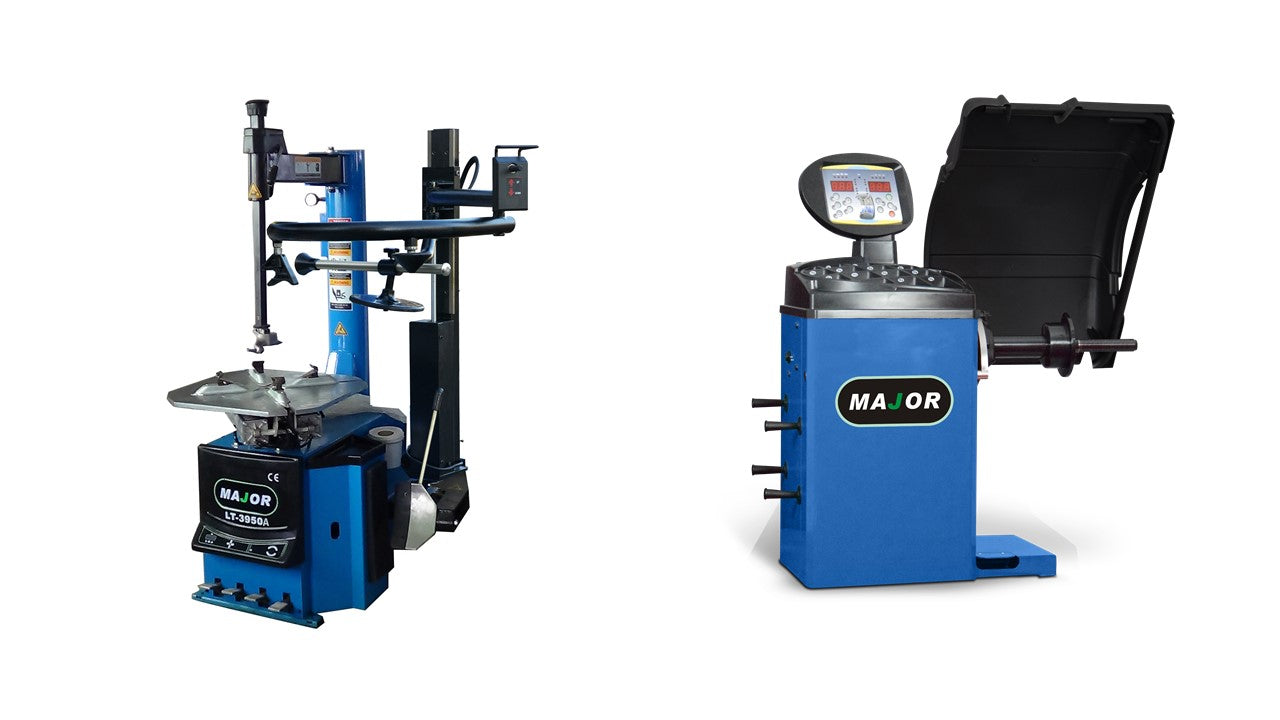

Tire Changer LT-3950
Highlights
- Classic swing arm design
- Simple helper arm
- Bead Blaster built in clamp
- Rim clamping system with stepping function.
- Plastic protection at wheel contact points.
- Plastic jaw cover
- Air regulator and oil lubricator
- Plastic mount/demount head
- Jaw adapter for motorcycle/ATV (Optional)
- Specification
Power supply/ Motor power | 110V 1.5HP |
Air pressure required | 115-175 psi |
Rim clamping range (External) | 13″-26″ |
Rim clamping Range (Internal) | 15″-28″ |
Bead break force | 5500 lbs (2500kg) |
Max. wheel diameter | 43″ (990mm) |
Max. wheel width | 15″ (381mm) |
Noise | <70db |
Shipping weight | 600 lbs. |
Shipping dimensions | 45″x38″x39″ |
Highlights
- Patent Italian Software
- LED display
- LED Light
- Laser indicator
- Automatic data input
- Static/Dynamic modes
- 3 standard aluminum modes/ aluminum Special mode
- Motorcycle mode (optional adapter required)
- Optimize function/split and hide weights behind spokes of wheel
- Multi Languages
- Grams and ounces, mm and inches convertible
- Pedal Brake
- Accessories:
- 4-piece cone set standard
- Speed nut standard
- Reverse Bowl standard
- Weight pliers standard
- Protective hood standard
- Tower spring
- Calibration weight
Wheel Balancer CB-5567
Specifications
Power supply/ Motor power | 110-120V |
Max. Wheel weight | 145 lbs |
Rim diameter | 10″-28″ |
Imbalance Resolution | ±1gram/0.035oz |
Cycle time | 6-9s |
Working ambient | 5°C-40°C |
Noise | <70db |
Shipping weight | 366 lbs |
Shipping dimensions | 39″x 30″x 45″ |

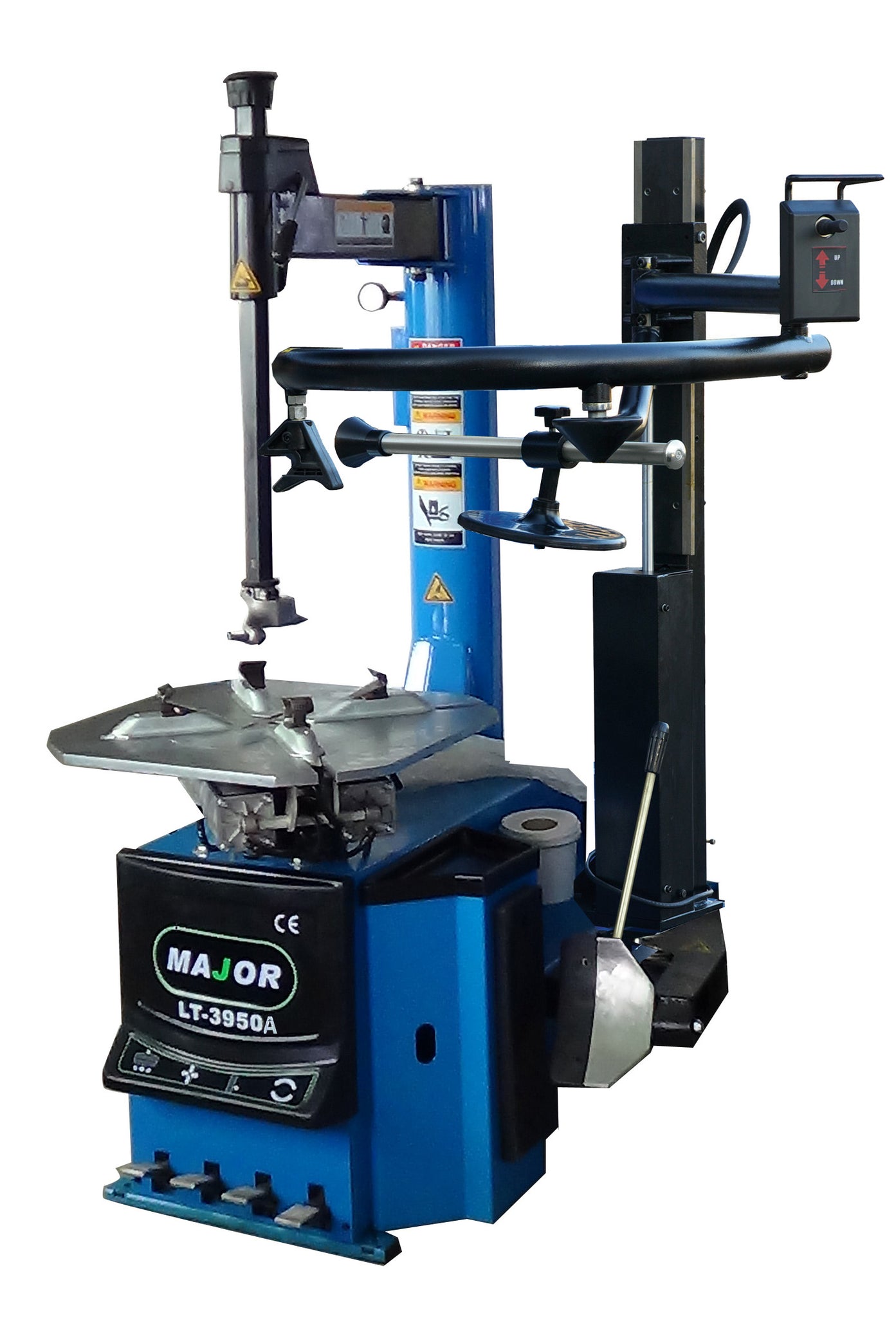

Tire Changer LT-3950
Descriptions:
Tire Changer LT-3950 is a classic swing arm rim clamp style tire machine which features integrated table bead blast system for seating the most stubborn of beads, and is capable of rim sizes from 15-28” internal clamping, 13-26” outside clamping. Bead blast storage tank is built into tower for maximum capacity and space efficiency. This Tire Changer Machine is powered via 110 volt 1.5 H.P. motor with maximum torque to change the toughest of tires with ease and compressed air max air pressure is 145 psi. Foot valves are aluminum (not plastic) for long maintenance free life.
Compared to the LC-3810, Tire Changer LT-3950 has a 4” larger table (28”), built in table bead blast system, foot pedal tire inflation/bead blast, overall larger/taller tower to accommodate wider/larger diameter wheel rims. Also includes 1 plastic Mount/Demount head in accessories box.
Included in accessories box 1 plastic M/Demount head, pry bar, air regulator/oil lubricator, soap brush, plastic jaw covers for outside clamping delicate wheels, side plastic protection inserts, bottom flat plastic protection inserts, (contact points of steel Mount/Demount head).
Add the simple assist arm AL-340 for even more versatility making low profile size tires easier to change including capability of outside rim clamping of low profile tires when used in conjunction with the rim clamp stepping function found in all of our tire machines. Simply half click foot pedal during jaw opening and jaws will stop in that position. A measurement Gage engraved into the table aids in perfect position of rim clamps for rim pressing into jaws then simply lightly press pedal to slowly close rim clamps and fully press to lock.
This tire machine is ready to upgrade to higher end machines by adding assist helper arms.
By adding the assist helper AL-310, it becomes tire changer LT-3950+AL310 (3950A),which has a right side helper arm; then adding helper AL-330, it becomes tire machine LT-3950+AL310+AL330 (3950S), which has both right and left sides helper arms.
Optional clamping adapters expand this tire changer workable on motorcycle, golf and ATV tire and wheel assemblies.

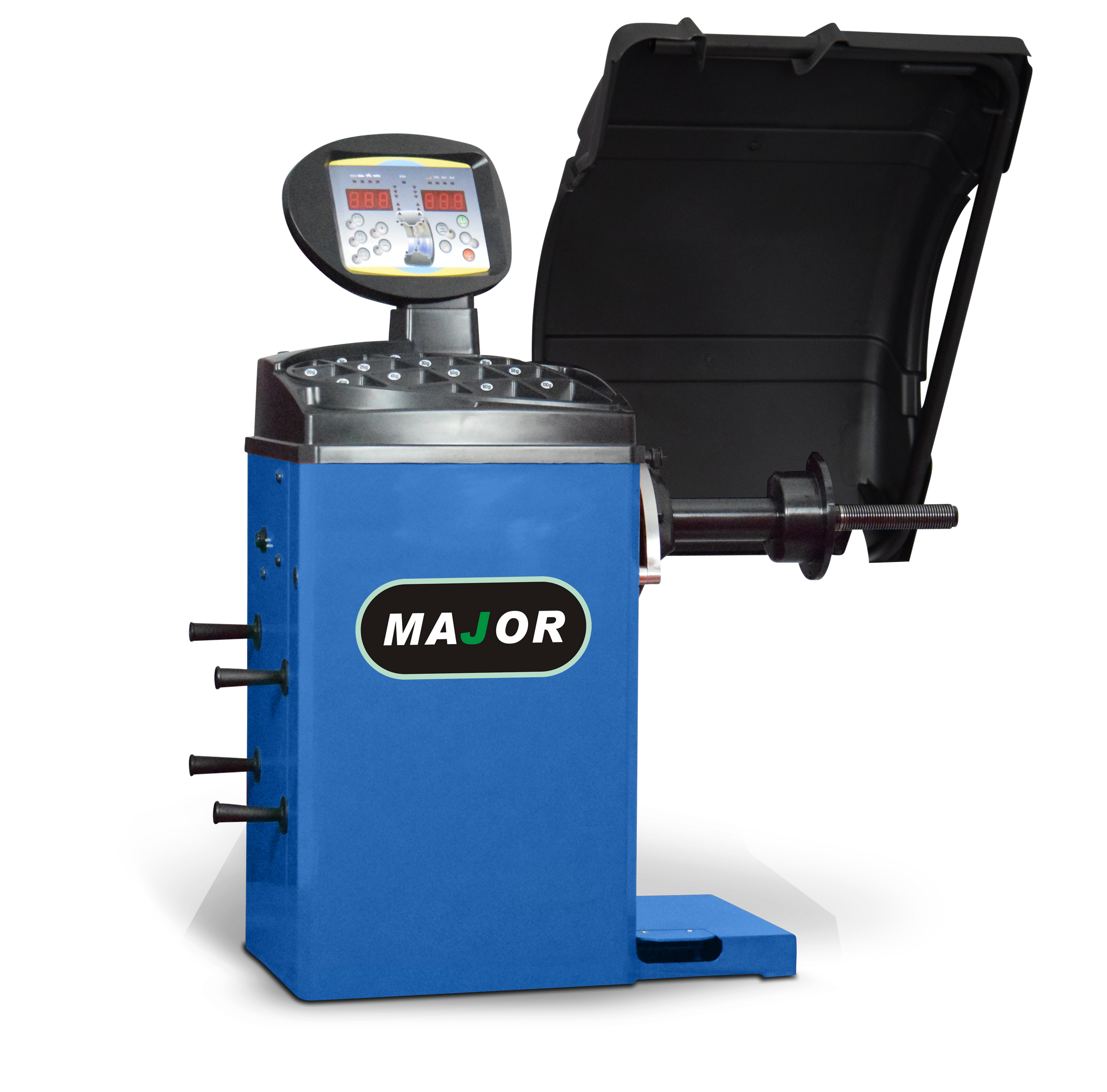

Wheel Balancer CB-5567
Prescription:
Wheel Balancer CB-5567 features our auto ruler measurement system. User simply slides ruler up to wheel rim and the CB-5567 wheel balancer will automatically enter the ruler distance to wheel rim as well as rim diameter in one quick step. Then user must simply measure and enter wheel width then close hood or press start button to start measurement cycle. A key feature with our ruler auto measure system is how easily Alum S mode wheel measurements are entered. User simply holds ruler at inner stick/clip weight position and presses enter, a beep is heard then user continues to slide ruler to outer stick weight position, hold for 2 seconds a second beep is heard. Return ruler and close hood or press start to begin measurement cycle. Exact weight positions are measured for ultimate accuracy and quick balance of the wheel assembly. For placement of stick weights, the weight is clipped into the end of the ruler and stuck into position using built in pressing block on the end of the ruler. The wheel balancer display will also count down to user pre-programmed position as ruler is extended into wheel to insure exact placement of stick weights. The wheel balancer CBL-5567 also can split and hide weights behind the spokes of aluminum wheels using the Alum S mode. The wheel balancer CB-5567 also features a laser pointer as well as foot brake for added convenience when placing weights. Balance up to 28” rim diameters as well as light truck including dual rear wheel assemblies with included light truck main shaft flange expansion ring and light truck cones included. Main shaft wheel weight capacity is 145 pounds. The wheel balancer CB-5567 also shows the static imbalance value in dynamic mode to aid the user in eliminating any vibration from the wheel assembly. If a high static imbalance is found after balancing the wheel in dynamic mode the user can at the press of a button switch to static mode and eliminate the static imbalance which avoids comebacks. Wheel assemblies can be mounted either cone inside with included spring and plastic bowl, or cone from outside wheel rim. Included accessories are: wheel weight pliers, a 4-cone car/light truck set including light truck flange adapter, rim width caliper measurement tool, quick nut for quick easy installation/removal of the wheel assembly and self calibration weight.
