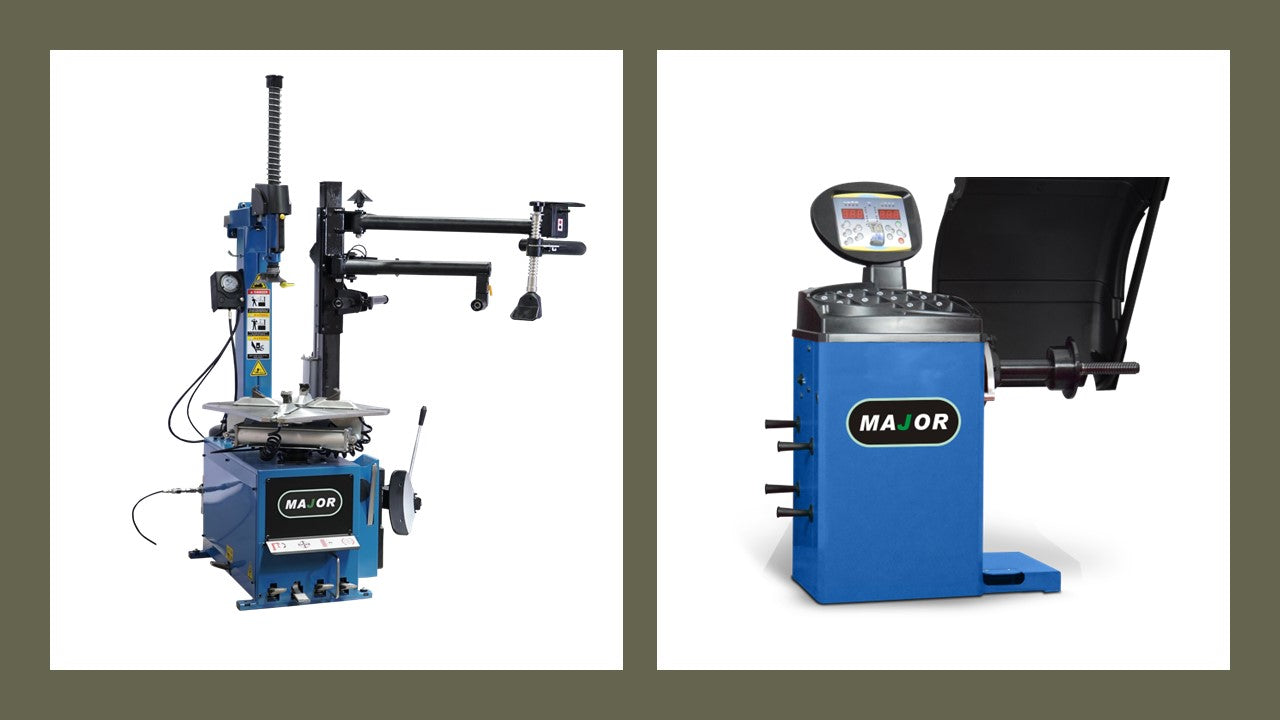

Tire Changer GT5887A+Helper 390H & Wheel Balancer CB-5567 | Low profile, Run-flat Professional Combo

Highlights

• Tilt tower for easier operation/tire replacement

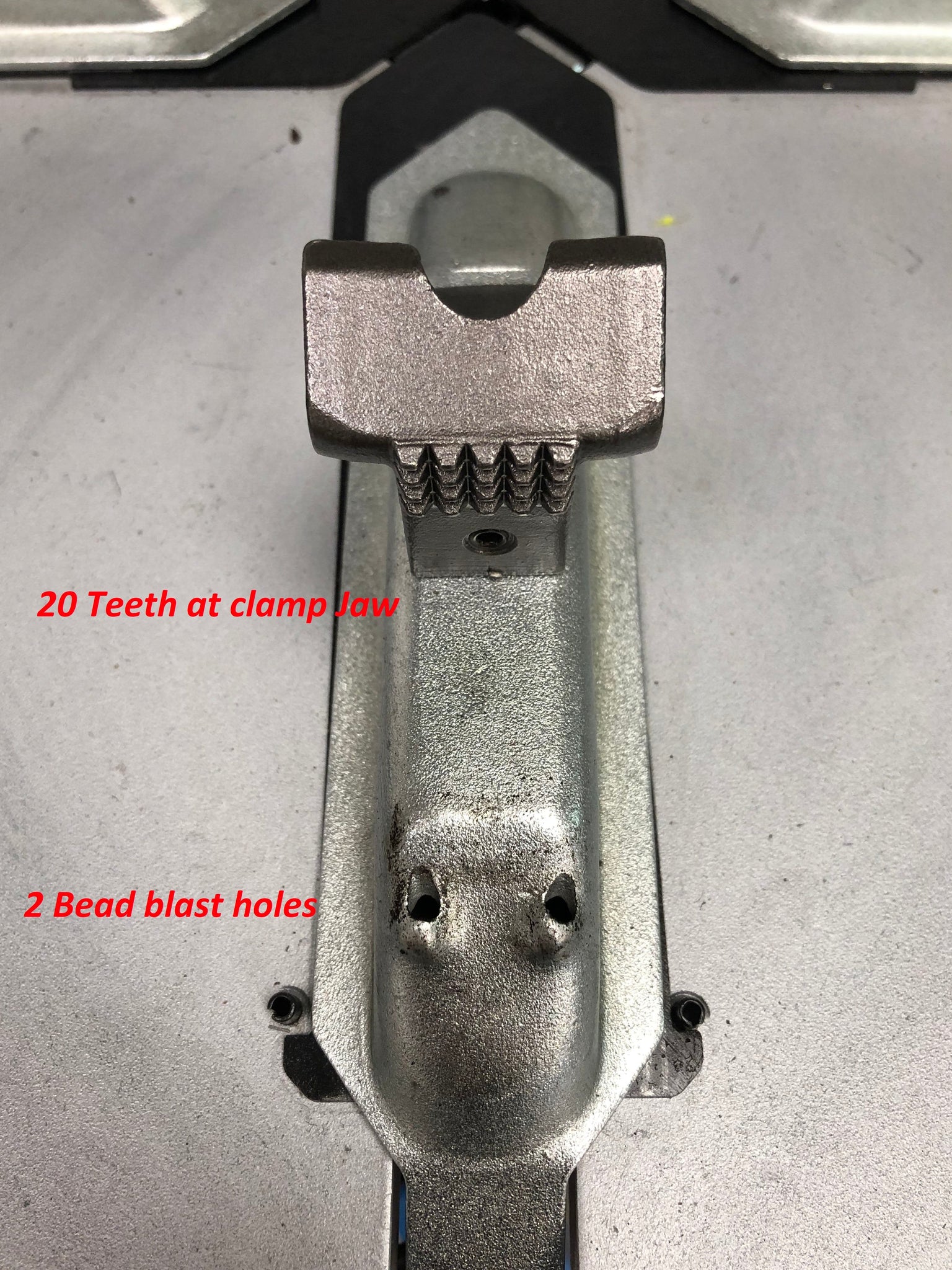

• Adjustable jaws-3 positions
• Bead assist arm makes wide and low-profile tire changes easy
• Rim Clamping system with stepping function. Jaws stop when pedal half pressed, and move inwards when pedal is pressed lightly
• Bead blast system built into table behind clamping jaws
• Steel mount/demount head with plastic inserts at wheel rim contact points
• Plastic mount/demount head (optional)
• Leaverless head (optional)
• Plastic jaw protection covers for reverse mount wheels
• Built in air reserve tank.
• Soap bucket

Specifications

Tire Balancer CB-5567, Automatic, Professional Grade

Highlights

• Patent Italian Software
• LED display
• LED Light
• Laser indicator
• Automatic data input
• Static/Dynamic modes
• 3 standard aluminmum modes/ aluminum Special mode
• Motorcycle mode (optional adapter required)
• Optimize function/split and hide weights behind spokes of wheel
• Multi Languages
• Grams and ounces, mm and inches convertible
• Pedal Brake
• Accessories:
• 4-piece cone set standard
• Speed nut standard
• Reverse Bowl standard
• Weight pliers standard
• Protective hood standard
• Tower spring
• Calibration weight

Descriptions:

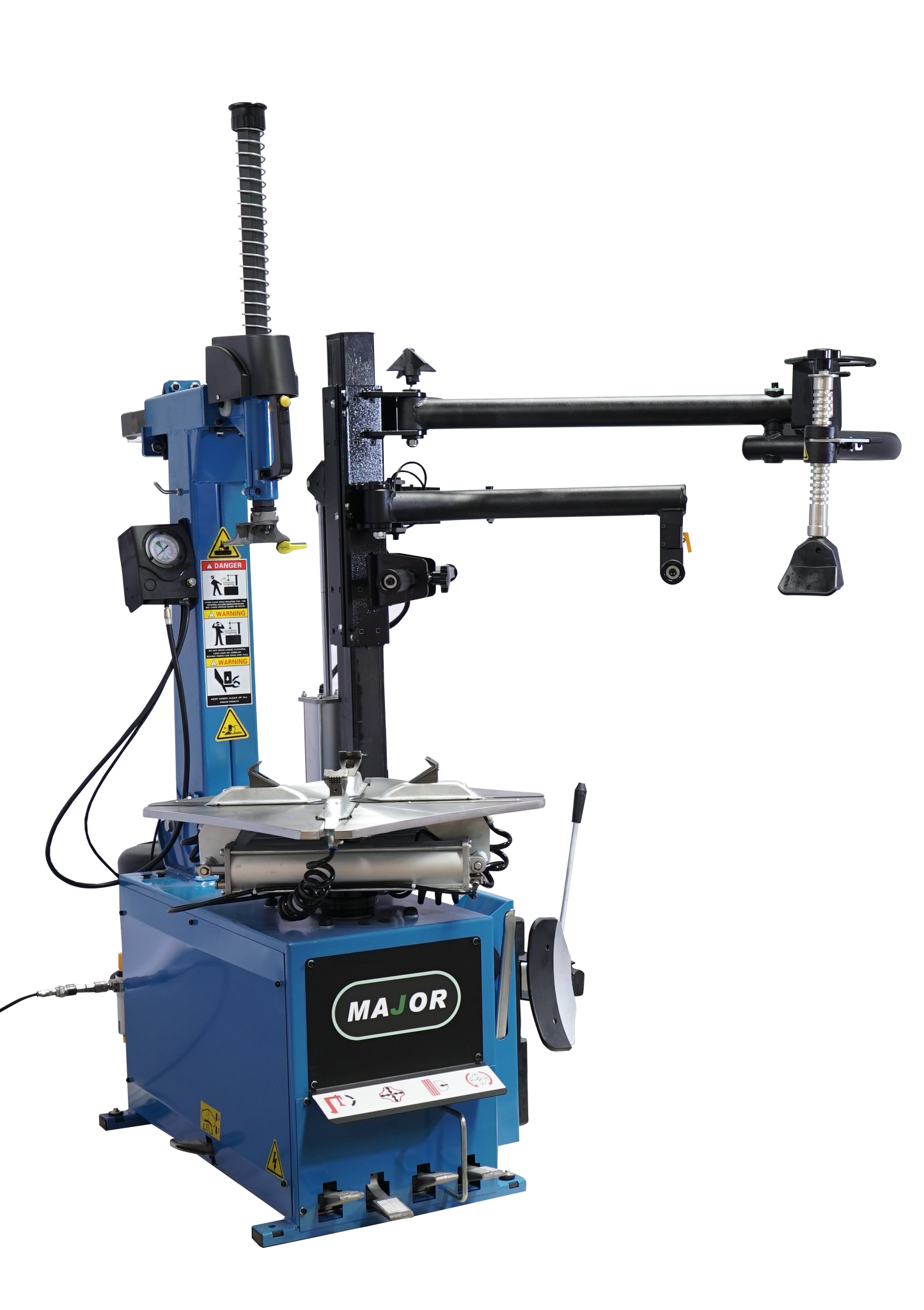

TIRE CHANGER MACHINE GT5887A+HELPER 390H is a tilt back tower style machine. The difference between the AL-390 assist arm to the AL-390H is the AL-390H has two rollers which press the bead as well as the bead assist following arm when mounting low-profile, run-flats tires. The tilt back system is the ultimate in efficiency and speed, user simply slides mount/demount head up to wheel rim and presses a button. Air locks both in and out and hex bar up and down travel in one quick step. For the rest of tire replacement user simply presses foot pedal to tilt tower with mount/demount head back and forth between tire replacement and does not need adjustment between the tires you are replacing. The mount/demount head will always line up with the rim exactly where you initially set it.

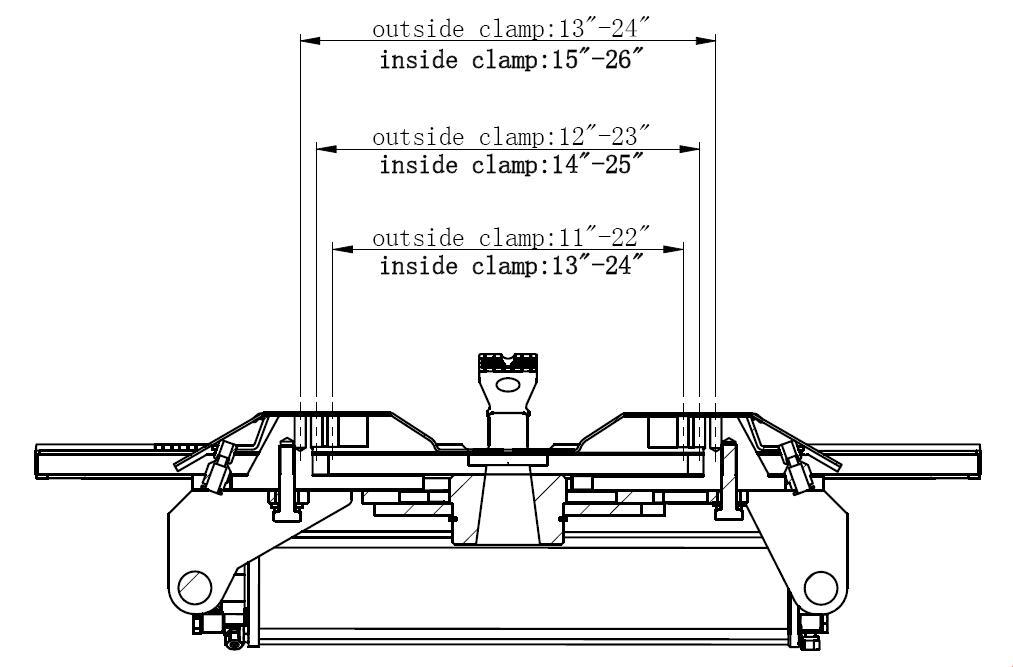

 Wheel diameters of 13”-26” inside rim clamping and 11-24” outside rim clamping, a full right side bead assist arm with roller wheel and following arm to install the toughest of tires and lifting disc to aid in removal of stiff sidewall tires and to release stuck second bead. Machine is powered via 110 volt 1.5 H.P. motor with maximum torque to change the toughest of tires with ease and compressed air 110-150 psi. Foot air valves are aluminum (not plastic) for long maintenance free life.

Optional clamping adapter can expand this machine into motorcycle, ATVs, Golf cart tire changing machines (9-30").

Included accessories, 1 pry bar, air regulator/oil lubricator, soap brush/bucket, plastic jaw covers for outside clamping of delicate wheels, side plastic protection inserts, bottom flat plastic protection inserts, (for rim contact points of steel M/Demount head).

Optional motorcycle adapters expand this tire changer workable on motorcycle, golf and ATV tire and wheel assemblies.

 This machine is proudly manufactured by the Italian Group Nexion SpA.  Nexion comprises nine major Italian wheel service brands: Corghi®, HPA Faip®, Mondolfo Ferro®, Orlandini®, Sice®, Tecnomotor®, Teco®, Bright®, and Stenhoj®.  Based in Italy, Nexion has operations worldwide, including manufacturing centers in Italy, Europe, and Asia.

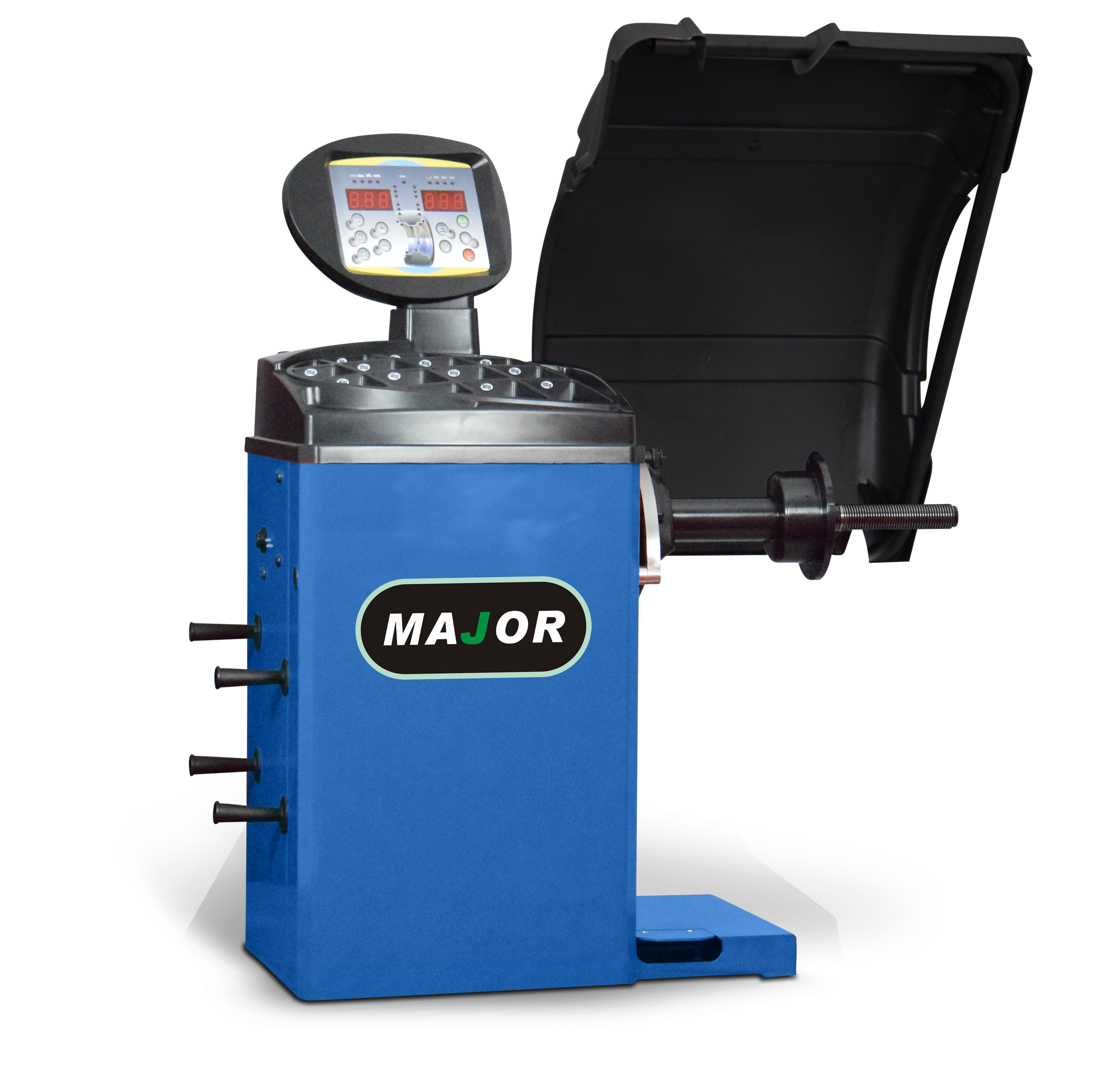

Wheel Balancer CB-5567 features our auto ruler measurement system. User simply slides ruler up to wheel rim and the CB-5567 wheel balancer will automatically enter the ruler distance to wheel rim as well as rim diameter in one quick step. Then user must simply measure and enter wheel width then close hood or press start button to start measurement cycle. A key feature with our ruler auto measure system is how easily Alum S mode wheel measurements are entered. User simply holds ruler at inner stick/clip weight position and presses enter, a beep is heard then user continues to slide ruler to outer stick weight position, hold for 2 seconds a second beep is heard. Return ruler and close hood or press start to begin measurement cycle. Exact weight positions are measured for ultimate accuracy and quick balance of the wheel assembly. For placement of stick weights, the weight is clipped into the end of the ruler and stuck into position using built in pressing block on the end of the ruler. The wheel balancer display will also count down to user pre-programmed position as ruler is extended into wheel to insure exact placement of stick weights. The wheel balancer CBL-5567 also can split and hide weights behind the spokes of aluminum wheels using the Alum S mode. The wheel balancer CB-5567 also features a laser pointer as well as foot brake for added convenience when placing weights. Balance up to 28” rim diameters as well as light truck including dual rear wheel assemblies with included light truck main shaft flange expansion ring and light truck cones included. Main shaft wheel weight capacity is 145 pounds. The wheel balancer CB-5567 also shows the static imbalance value in dynamic mode to aid the user in eliminating any vibration from the wheel assembly. If a high static imbalance is found after balancing the wheel in dynamic mode the user can at the press of a button switch to static mode and eliminate the static imbalance which avoids comebacks. Wheel assemblies can be mounted either cone inside with included spring and plastic bowl, or cone from outside wheel rim. Included accessories are: wheel weight pliers, a 4-cone car/light truck set including light truck flange adapter, rim width caliper measurement tool, quick nut for quick easy installation/removal of the wheel assembly and self calibration weight.

This machine is proudly manufactured by the Italian Group Nexion SpA.  Nexion comprises nine major Italian wheel service brands: Corghi®, HPA Faip®, Mondolfo Ferro®, Orlandini®, Sice®, Tecnomotor®, Teco®, Bright®, and Stenhoj®.  Based in Italy, Nexion has operations worldwide, including manufacturing centers in Italy, Europe, and Asia.

Installation

Calibration
